Flat Wire

Piston Ring Flat Steel Wire Manufacturer

Home > Products > Flat Wire

Piston Ring Flat Steel Wire Manufacturer

As part of the piston ring, our company produces flat steel wires that serve four functions: sealing, adjusting oil, conducting heat, and guiding. Diesel engines and gasoline engines are the two most commonly used types of automobile engines. They differ in fuel performance, so their piston rings need to be different. Early piston rings were cast. Steel high-power piston rings, on the other hand, emerged as a result of technological advances. Chromium plating, gas nitriding, physical deposition, surface coating, zinc manganese phosphating treatment, etc., are some of the advanced surface treatment applications used to enhance engine function and environmental requirements. The function of piston rings is greatly improved by chromium plating, gas nitriding, surface coatings, zinc manganese phosphating, etc.

Send Email Contact Us

Product Detail

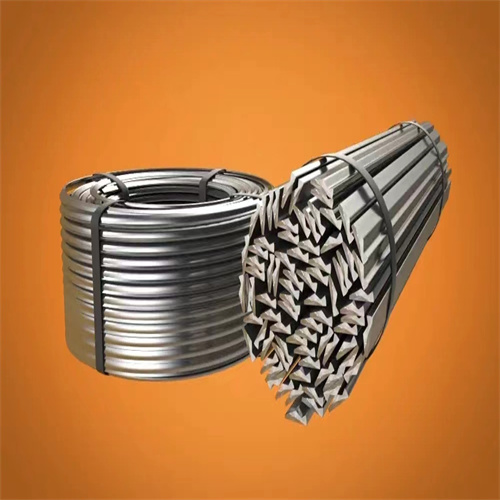

Piston Ring Flat Steel Wire

Brand:WANJING

a type of steel wire used in the manufacturing, reinforcement, or assembly of pistons or related components. This wire could have specific properties, such as high tensile strength, heat resistance, or other mechanical characteristics suitable for the demanding environment within an engine.

Product Details of Piston Ring Flat Steel Wire

Product introduction

Material	Thickness Mm	Width Mm	Hardness Hv	Tensile Strength Mpa
6Cr17Mo	0.3-5.0	1.0-8.0	400-450	≥1200
8Cr17Mo	0.3-5.0	1.0-8.0	360-420	≥1100
55CrSi	0.3-5.0	1.0-8.0	500-550	≥1300
SUS304	0.2-0.6	1.0-3.8	180-350	≥550
SWRH72A	0.2-0.6	1.0-3.8	450-550	≥1300

Product information

It is a metal ring that inserts into the piston groove. There are two types of piston rings: compression rings and oil rings. It is possible to seal the mixture of combustible gas and oil in the combustion chamber using the compression ring; and to scrape off excess oil from the cylinder using the oil ring.

Piston rings are made of metal elastic bands with large outward expansion deformation, which are incorporated into the section as well as the ring grooves corresponding to them. Depending on the pressure difference of gas or liquid, the reciprocating and rotating piston ring forms a seal between the ring's circular surface and the cylinder, and one side of the ring's groove and the cylinder.

As part of the piston ring, our company produces flat steel wires that serve four functions: sealing, adjusting oil, conducting heat, and guiding. Diesel engines and gasoline engines are the two most commonly used types of automobile engines. They differ in fuel performance, so their piston rings need to be different. Early piston rings were cast. Steel high-power piston rings, on the other hand, emerged as a result of technological advances. Chromium plating, gas nitriding, physical deposition, surface coating, zinc manganese phosphating treatment, etc., are some of the advanced surface treatment applications used to enhance engine function and environmental requirements. The function of piston rings is greatly improved by chromium plating, gas nitriding, surface coatings, zinc manganese phosphating, etc.
