Piston Ring Flat Steel Wire
Piston Ring Flat Steel Wire,The flat steel wire of piston ring produced by our company has four functions: sealing, adjusting oil, conducting heat and guiding. Diesel and gasoline engines are the most commonly used kinds of automobile engines. As a result of their different fuel performance, piston rings are not the same. Initially, piston rings were cast. As technology progressed, steel high-power piston rings became available. As engine function and environmental requirements are constantly improving, advanced surface treatment methods, such as thermal spraying and electroplating, are applied. The function of piston rings is greatly improved by chromium plating, gas nitriding, physical deposition, surface coatings, zinc manganese phosphating, etc.
Product Detail

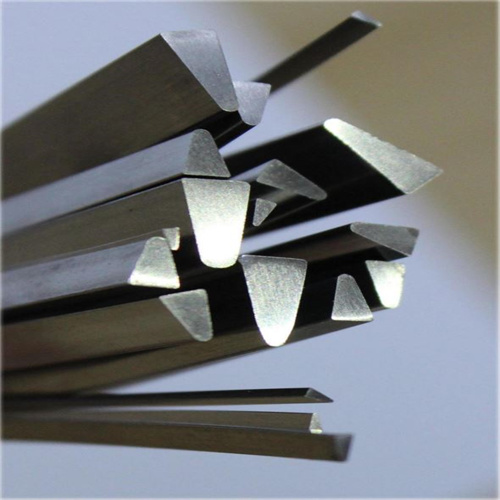

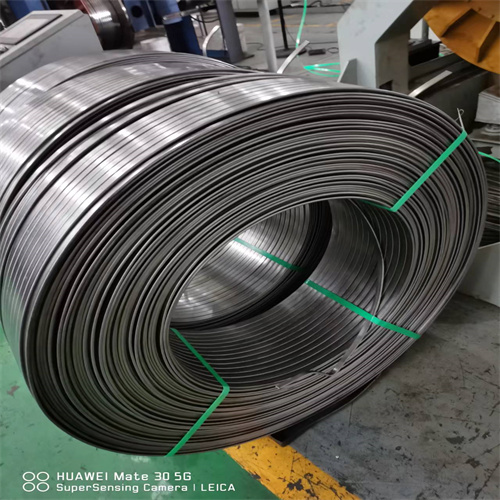

Piston steel flat wires
BRAND:WANJING PRECISION WIRE
Material | Thickness Mm | Width Mm | Hardness Hv | Tensile Strength Mpa |
6Cr17Mo | 0.3-5.0 | 1.0-8.0 | 400-450 | ≥1200 |
8Cr17Mo | 0.3-5.0 | 1.0-8.0 | 360-420 | ≥1100 |
55CrSi | 0.3-5.0 | 1.0-8.0 | 500-550 | ≥1300 |
SUS304 | 0.2-0.6 | 1.0-3.8 | 180-350 | ≥550 |
SWRH72A | 0.2-0.6 | 1.0-3.8 | 450-550 | ≥1300 |
Product information
It is used to insert into the groove of the piston a metal ring. A piston ring can be either a compression ring or an oil ring. A compression ring seals the mixture of combustible gases within the combustion chamber; an oil ring removes excess oil from the cylinder.
Basically, a piston ring is made of metal elastic material with a large outward expansion deformation, which is assembled into the section and its corresponding ring groove. The reciprocating and rotating piston ring, based on the pressure difference of gas or liquid, forms a seal between the circular surface of the ring and the cylinder as well as one side of the ring and the ring groove.
The flat steel wire of piston ring produced by our company has four functions: sealing, adjusting oil, conducting heat and guiding. Diesel and gasoline engines are the most commonly used kinds of automobile engines. As a result of their different fuel performance, piston rings are not the same. Initially, piston rings were cast. As technology progressed, steel high-power piston rings became available. As engine function and environmental requirements are constantly improving, advanced surface treatment methods, such as thermal spraying and electroplating, are applied. The function of piston rings is greatly improved by chromium plating, gas nitriding, physical deposition, surface coatings, zinc manganese phosphating, etc.
Among Our Main Products Are The Following:

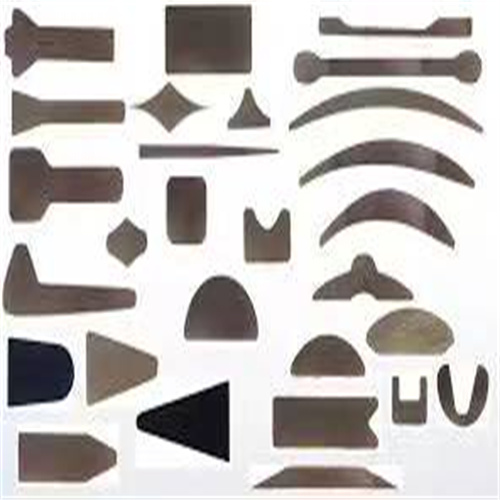

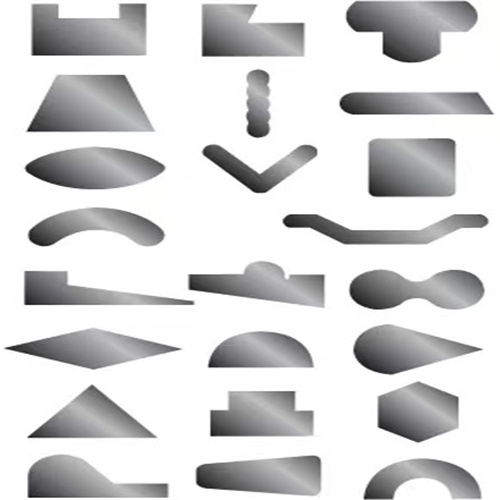

Flat Wire Precision Rolled Products
