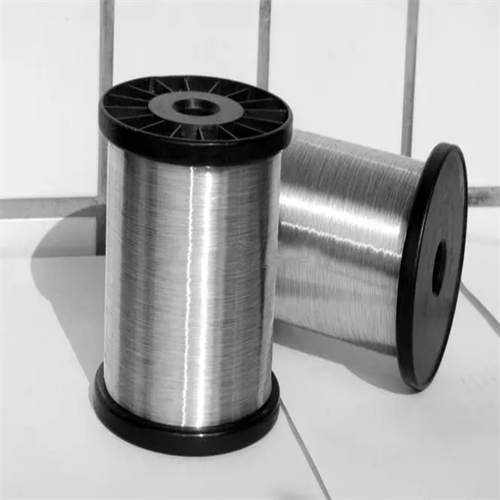

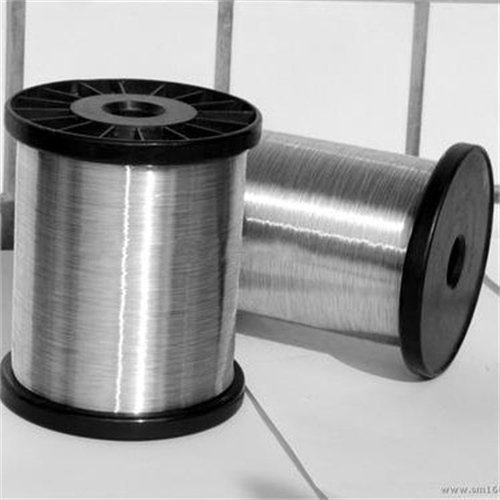

Heating Wire 4mm Electric Heating Wire Iron Chromium Aluminum Wire

Brand: WANJING

Product Name: A1 Heating Wire 4mm Electric Heating Wire Iron Chromium Aluminum Wire

Product Wire Diameter: 4.0mm

Meter resistance: 0.115Ω/m

Packaging: wooden box, carton packaging

Production cycle: 7-10 working days

Uses: Industrial kilns, muffle furnaces, pit furnaces, metallurgical machinery, medical, chemical, ceramics, electronics, electrical appliances, glass and other industrial heating equipment and civil heaters, etc.

A1 Heating Wire 4mm Electric Heating Wire Iron Chromium Aluminum Wire

Main advantages:

1.      Temperature is 1425℃/2600°f, higher than 1250℃/2280°f of nickel-chromium alloy

2.       Longer life (2-4 times)

3.      Higher surface load

4.      Higher resistivity, lower density, will not produce oxide debris, which can contaminate goods and electric furnaces, and may also cause short circuit or failure of electric heating elements and gas burners. For electric furnace users, the use of iron-chromium-aluminum alloy wire results in cheaper operation, less material consumption and longer service life.

A1 Heating Wire 4mm Electric Heating Wire Iron Chromium Aluminum Wire

Some Suggestions For Extending Component Life:

 1. Avoid Temperature Changes. The operating life of components will decrease with temperature changes, so a power control device with stable temperature should be selected.

 2. Choose Thicker Component Materials. The thickness of the material has a direct impact on the component life. As the wire increases directly, more alloy components per unit on the surface will form new oxides. Therefore, at a specific temperature, thicker linear components have a longer life, and similarly, thicker strips have a longer life than thinner ones.

 3. Adjust The Temperature Of Components according to the atmosphere of the electric furnace. The influence of some common electric furnace atmosphere on the operating temperature of components. Since there is a risk of "green corrosion" at 800~950℃ and 1470~1740℉, nickel-containing alloy wires must not be used for CO-containing protection. Sexy and atmospheric electric stove. In such cases, it is recommended to use iron-chromium-aluminum alloy, but the components must be pre-oxidized at 1050℃1920℉ for 7-10 hours. Components should be periodically reoxidized.

 4. Avoid Erosion Of Electric Furnaces By Solids, fluids and gases. Atmospheric impurities, such as oil, dust, volatile substances or carbon deposits, can damage components. Sulfur is harmful to all nickel alloys. Chlorine in different states will destroy iron-chromium-aluminum a-1 electric heating wires and nickel-containing alloy wires. Metal solutions or salts may also damage components.

Our company's electric heating alloy products include electric heating wires, resistance wires, and various iron-chromium-aluminum wires, which have the characteristics of small temperature coefficient of resistance and high operating temperature.

The Company's Products Include: iron-chromium-aluminum heating wire, nickel-chromium heating wire, electric furnace wire, copper-nickel alloy wire, pure nickel wire, constantan wire, manganese copper wire, enameled wire, alloy flat strip, electric heating mesh belt, high-power heater, Heating tubes and other hundreds of different types of products, as well as imported Swedish Kantel electric heating wires, American incoloy800/801 heating tubes, inconel 601 corrosion-resistant mesh belts, Japanese imported sus 310s heat-resistant steel mesh, sus 314 heat-resistant steel Net, Germany's ESAB alloy heating wire, and other products.

  The Company's High-Resistance Electric Heating Alloy Wire has the characteristics of small temperature coefficient of resistance and high operating temperature. It has good stability at high temperatures and is especially suitable for use in atmospheres containing sulfur and chemicals. It is also low-cost and is an ideal material for industrial electric furnaces, household appliances, and far-infrared devices. The process and equipment of raw materials and scientific management methods are the guarantee for the production of high-quality products. The company follows the above principles, organizes product production, and establishes a complete set of production process operating procedures and quality control procedures for semi-finished products and finished sheets to ensure product quality requirements. The company's products are suitable for: various electric furnace manufacturing, metal product heat treatment equipment, major steel plants, aluminum plants, metallurgy, petrochemicals, glass, ceramics, enamel, textiles, household appliances, electronic appliances, industrial appliances, food machinery, aircraft manufacturing , automobile manufacturing and other manufacturing industries.

Our products involve non-standard customization, with a wide range of sizes and specifications. Different sizes are different, so there may be differences on the web page. Please be sure to call us directly before ordering.
