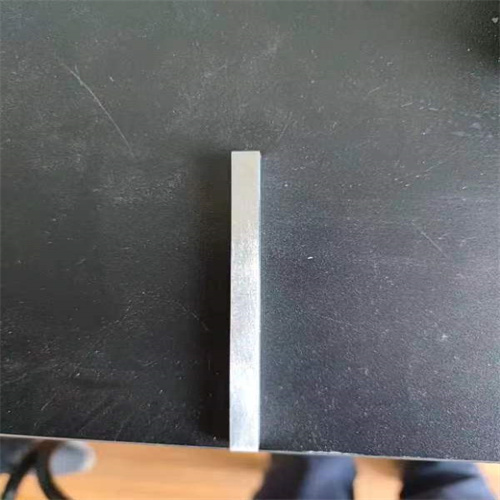

Tight Tolerance Square Wire

Tight Tolerance Square Wires are used for making hand-made jewellery as they are easily formed.
Rolled Tight Tolerance Square Wires can be compressed in size. Therefore, it can be used in making other shapes such as the oval, round, and sometimes flat-rolled.Tight Tolerance Square Wires are used in the production of mechanical spring as it ensures greater strength and enables the spring to respond when force is applied or released.
A header bar is produced by heating a long square metal is heated and gradually reduced in cross-section by processing it through a series of rolls and then coiled.
Tight Tolerance Square Wire mesh is highly used in welded construction, railing infill panels, fan guards, filtration systems, and many other applications.
Tight Tolerance Square Wires are also used in making archwires, known as the thickness of the wire. An orthodontist generally uses Tight Tolerance Square Wire as it fits into the bracket easily which controls tooth movement.
Tight Tolerance Square Wires are particularly suitable for building up the cores of the rotating coil of dynamos or motors

Send Email Contact Us

Product Detail

Tight Tolerance Square Wire

Products:	Woven galvanized wire cloth
Material:	Low carbon steel wire
Size:	General Specification Or As customer’s Requirement.
HS code:	7314410000
Sample:	Most specifications are available in stock and free samples offered.

Brand Name:	WANJING
Place of Origin:	China.
Quality:	ISO9001:2000、ISO14001、CNAS、SGS
Payment Terms:	T/T or L/C
Port:	Shanghai,China

Tight Tolerance Square Wire is available in stainless steel, specialty metals, carbon steel, beryllium copper, and phos bronze in small to truckload quantities. Gibbs Interwire Tight Tolerance Square Wire is rolled to shape from round wire, or die drawn to size.

Tight Tolerance Square Wire is available in a variety of corners including controlled radius. Our ability to provide Tight Tolerance Square Wire to tight tolerances, burr free, few or no welds, continuous coil, or precision cut lengths provides the manufacturer with longer runs and less secondary operations.

Tight Tolerance Square Wire Features and Benefits

Precision Rolled or Die Drawn to Tight Tolerances

Controlled Radius Edges

ISO Certified, SAE, AMS, ASTM, UNS, EN, and more

Statistical Process Control and Reporting

Close Dimensional Tolerances and Consistent Properties Throughout the Cross-Section

Precision Cut Lengths Available

Tight Tolerance Square Wire Alloys

Stainless Steel Tight Tolerance Square Wire: 301, 302, 304/304L, 304V, 316L, 410, 416, 420, 17-7PH, and more!

Nickel Alloy Tight Tolerance Square Wire: Monel 400, Monel 405, Inconel 600, Inconel 625, X750, and more!

Carbon Steel Tight Tolerance Square Wire: Music Wire, Galvanized Wire, HDMB, OTMB, Chrome Silicon, Chrome Vanadium, 1050, 1075, 1095, and more!

Red Metals: Beryllium Copper, Phos Bronze, and more!

Tight Tolerance Square Wire Size Range

0.010″ x 0.010″ up to .475” x .475”

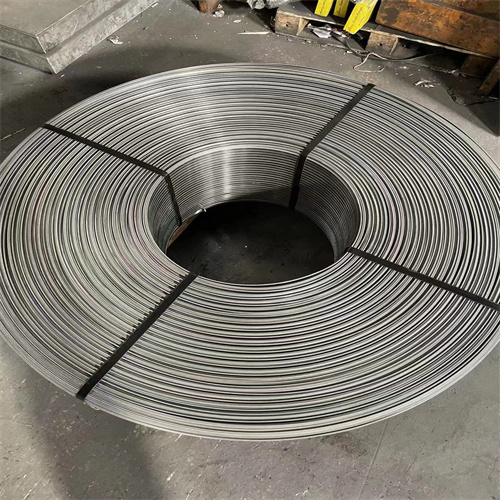

Tight Tolerance Square Wire Packaging Options

Coil weights 5 lbs. up to 5,500 lbs.

Coil I.D’s from 12″ to 66”″

Reels ,Spools and Coils as Small as 5 lbs and up to 1,000 lbs.

Tight Tolerance Square Wire Applications & End Uses

Springs

Eye Glass Frames

Medical Catheter and Guide Wire

Header Bar

Orthodontic Arch Wire

Mesh

Screwdrivers

Agricultural

Snow mobile and ATV

Housing

electrical

Automotive applications

Uses and applications of Tight Tolerance Square Wire :

Tight Tolerance Square Wires are used for making hand-made jewellery as they are easily formed.

Rolled Tight Tolerance Square Wires can be compressed in size. Therefore, it can be used in making other shapes such as the oval, round, and sometimes flat-rolled.

Tight Tolerance Square Wires are used in the production of mechanical spring as it ensures greater strength and enables the spring to respond when force is applied or released.

A header bar is produced by heating a long square metal is heated and gradually reduced in cross-section by processing it through a series of rolls and then coiled.

Tight Tolerance Square Wire mesh is highly used in welded construction, railing infill panels, fan guards, filtration systems, and many other applications.

Tight Tolerance Square Wires are also used in making archwires, known as the thickness of the wire. An orthodontist generally uses Tight Tolerance Square Wire as it fits into the bracket easily which controls tooth movement.

Tight Tolerance Square Wires are particularly suitable for building up the cores of the rotating coil of dynamos or motors
