Titanium Wire Of Highest Quality And Strength
During the manufacturing of Titanium Wire Of Highest Quality And Strength, we use semi-finished titanium bars. When the titanium bars are inserted into a mold, due to the pulling effect, they deform under high temperature when they pass through the hole in the mold. As a result, the cross section is reduced, and the length is increased. As titanium wires are stretched in a heated state, internal stress is eliminated and their plasticity is improved. By improving the precision and surface finish of the titanium wire, a better overall performance is achieved.
Product Detail
Titanium Wire Of Highest Quality And Strength
Brand: WANJING
Material: CP titanium, titanium alloy
Grade: Gr1, Gr2, Gr4, Gr5, Gr7, Gr9, Gr11, Gr12, Gr16, Gr23 etc
Size: Diameter: 0.1～7mm * L
Standard: ASTM B863, AWS A5.16, ASTM F67, ASTM F136 etc
Shape: Straight, Coil
Status: Annealed (M)
Technology: Hot rolling, Stretching, cold rolled, cold drawn
Surface: Pickled, Polished, Bright
Description of Titanium Wire Of Highest Quality And Strength
During the manufacturing of Titanium Wire Of Highest Quality And Strength, we use semi-finished titanium bars. When the titanium bars are inserted into a mold, due to the pulling effect, they deform under high temperature when they pass through the hole in the mold. As a result, the cross section is reduced, and the length is increased. As titanium wires are stretched in a heated state, internal stress is eliminated and their plasticity is improved. By improving the precision and surface finish of the titanium wire, a better overall performance is achieved.
Application of Titanium Wire Of Highest Quality And Strength
The Titanium Wire Of Highest Quality And Strength is usually used for welding, frames, surgical implants, decoration, electroplating hanging fixture. The titanium powder is produced from titanium wire.
Specification of Titanium Wire Of Highest Quality And Strength
Grade | Status | Diameter(mm) |
Gr1,Gr2,Gr4,Gr5,Gr7,Gr9, Gr11, Gr12,Gr16,Gr23 | Hot Rolled(R) Cold Rolled(Y) Annealed(M) Solution treatment(ST) | 0.1~7.0 |
Chemical composition of Titanium Wire Of Highest Quality And Strength
Grade | Chemical composition, weight percent (%) | ||||||||||||
C (≤) | O (≤) | N (≤) | H (≤) | Fe (≤) | Al | V | Pd | Ru | Ni | Mo | Other Elements Max. Each | Other Elements Max. Total | |
Gr1 | 0.08 | 0.18 | 0.03 | 0.015 | 0.20 | — | — | — | — | — | — | 0.1 | 0.4 |
Gr2 | 0.08 | 0.25 | 0.03 | 0.015 | 0.30 | — | — | — | — | — | — | 0.1 | 0.4 |
Gr4 | 0.08 | 0.25 | 0.03 | 0.015 | 0.30 | — | — | — | — | — | — | 0.1 | 0.4 |
Gr5 | 0.08 | 0.20 | 0.05 | 0.015 | 0.40 | 5.5~6.75 | 3.5~4.5 | — | — | — | — | 0.1 | 0.4 |
Gr7 | 0.08 | 0.25 | 0.03 | 0.015 | 0.30 | — | — | 0.12~0.25 | — | 0.12~0.25 | — | 0.1 | 0.4 |
Gr9 | 0.08 | 0.15 | 0.03 | 0.015 | 0.25 | 2.5~3.5 | 2.0~3.0 | — | — | — | — | 0.1 | 0.4 |
Gr11 | 0.08 | 0.18 | 0.03 | 0.15 | 0.2 | — | — | 0.12~0.25 | — | — | — | 0.1 | 0.4 |
Gr12 | 0.08 | 0.25 | 0.03 | 0.15 | 0.3 | — | — | — | — | 0.6~0.9 | 0.2~0.4 | 0.1 | 0.4 |
Gr16 | 0.08 | 0.25 | 0.03 | 0.15 | 0.3 | — | — | 0.04~0.08 | — | — | — | 0.1 | 0.4 |
Gr23 | 0.08 | 0.13 | 0.03 | 0.125 | 0.25 | 5.5~6.5 | 3.5~4.5 | — | — | — | — | 0.1 | 0.1 |
Physical properties of Titanium Wire Of Highest Quality And Strength
Grade | Tensile Strength Min | Yield Strength Min (0.2%,offset) | Elongation Min (%) | |||
ksi | MPa | ksi | MPa | |||
Gr1 | 35 | 240 | 20 | 138 | 20 | |
Gr2 | 50 | 345 | 40 | 275 | 18 | |
Gr4 | 80 | 550 | 70 | 483 | 15 | |
Gr5 | 130 | 895 | 120 | 828 | 10 | |
Gr7 | 50 | 345 | 40 | 275 | 18 | |
Gr9 | 90 | 620 | 70 | 483 | 15 | |
Gr11 | 35 | 20 | 20 | 138 | 20 | |
Gr12 | 70 | 483 | 50 | 345 | 18 | |
Gr16 | 50 | 345 | 40 | 275 | 20 | |
Gr23 | 115 | 793 | 110 | 759 | 10 | |
Tolerance (mm) of Titanium Wire Of Highest Quality And Strength
Diameter | Thickness tolerance |
0.1~0.2 | ±0.025 |
0.2~0.5 | ±0.04 |
0.56~1.0 | ±0.06 |
1.0~2.0 | ±0.08 |
2.0~4.0 | ±0.10 |
4.0~7.0 | ±0.14 |
Testing of Titanium Wire Of Highest Quality And Strength
Chemical composition test
Physical properties test
Appearance defects inspection
Metallographic examination
Packaging of Titanium Wire Of Highest Quality And Strength

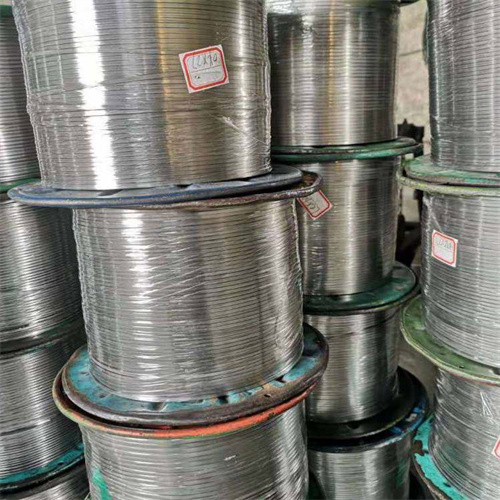

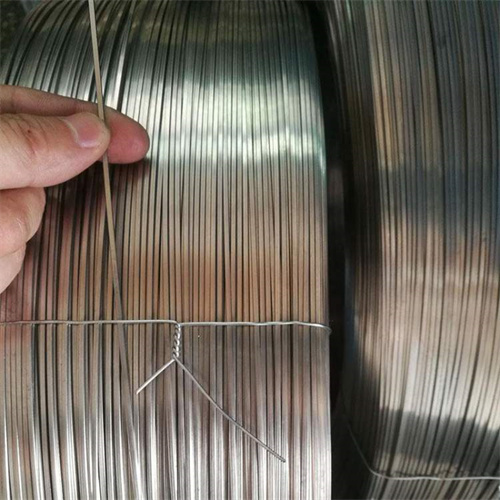

Coil wire: After the wind and parcel with pearl cotton(expandable polyethylene), then packed in wooden cases.

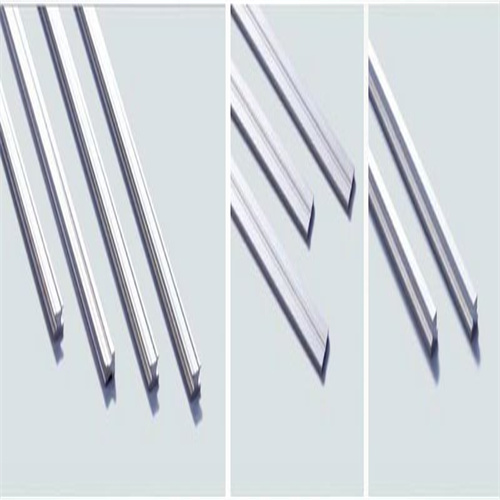

Straight wire: Pack the titanium wire in plastic bags and put in plastic straight barrel, then packed in wooden cases
